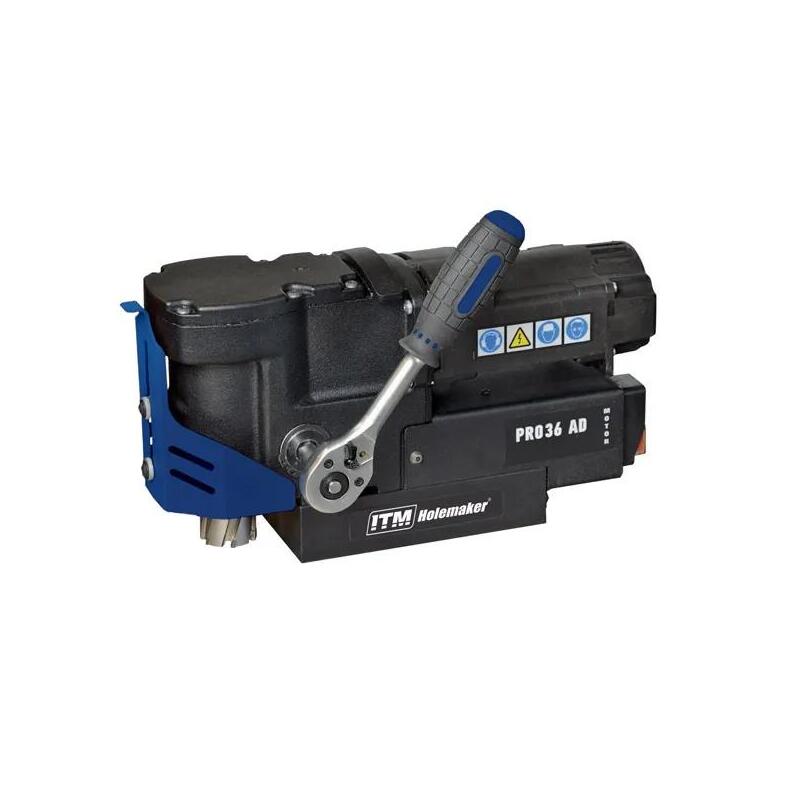

ITM HOLEMAKER PRO36AD MAGNETIC BASE ANGLE DRILL,240V, CAPACITY: 36MM DIA X 30MM
Description
The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36mm diameter to a depth of up to 30mm (1-3/16″). PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4″) Weldon shank. Features:. Ultra-low profile mag drill of 176mm height only. Extremely low weight of just 9.5 kg (21 lbs). Milling capacity up to 36 mm (1-7/16”). Accepts also twist drills with 19,05 mm (3/4”) Weldon shank. Stroke – 39 mm. Integrated swarf guard. Detachable feed lever (feat. ratchet) can be fixed from either side. Lifting handle for easy transportation. Cooling with a bottle
Specifications
• Capacity (Diameter): 36mm, Capacity (Twist Drill): 30mm, Capacity (Twist Drill): 12mm, Motor Power: 920 watt • Input Power: 1000 watt Single Phase 240V • Speed: 370rpm • Weight: 9.5kg • Magnetic Dead Lift: 8900Nm On 25mm Steel Plate • Stroke: 39mm, Height: 176mm Constant Working Height • Through Spindle Coolant System • Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion • Comes complete in plastic carry case
