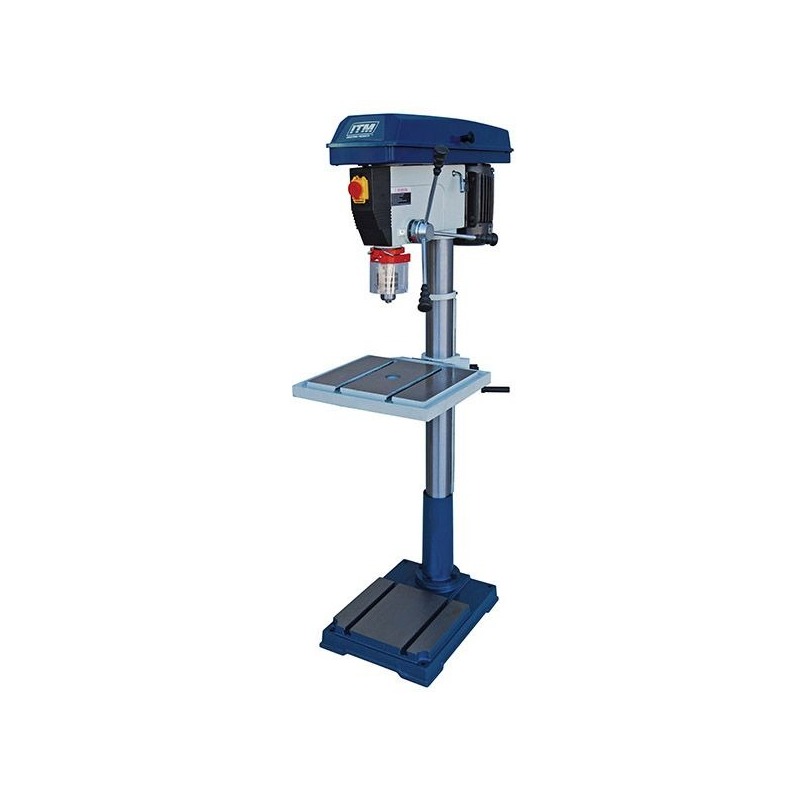

ITM ITM PEDESTAL FLOOR DRILL PRESS, 4MT, 32MM CAP, 12 SPEED, 510MM SWING, 1500W 240V
Description
Quality casting, construction & componentry. Emergency stop. NVR safety switch. Each Unit Supplied With:. Chuck safety guard. Drill chuck & arbor. Drill drift (on MT models).
Specifications
• Drilling Capacity (mm): 32mm (1-1/4″) • Spindle Taper: #4MT • Chuck: 5-20mm B22 • Motor Power: 1500W 240V • Spindle Travel (mm): 120 • Speed: 12 Speed 150-2450 • Swing (mm): 510 • Table Size / Base Size (mm): 420×480 / 560×450 • Column Diameter (mm): 92 • T-Slot Size: 14mm • Height (mm): 1710 • N.W. / G.W. (kg): 114 / 122 Drill press vice to suit: VDP150 •
Cross slide vice to suit: TM130-150
