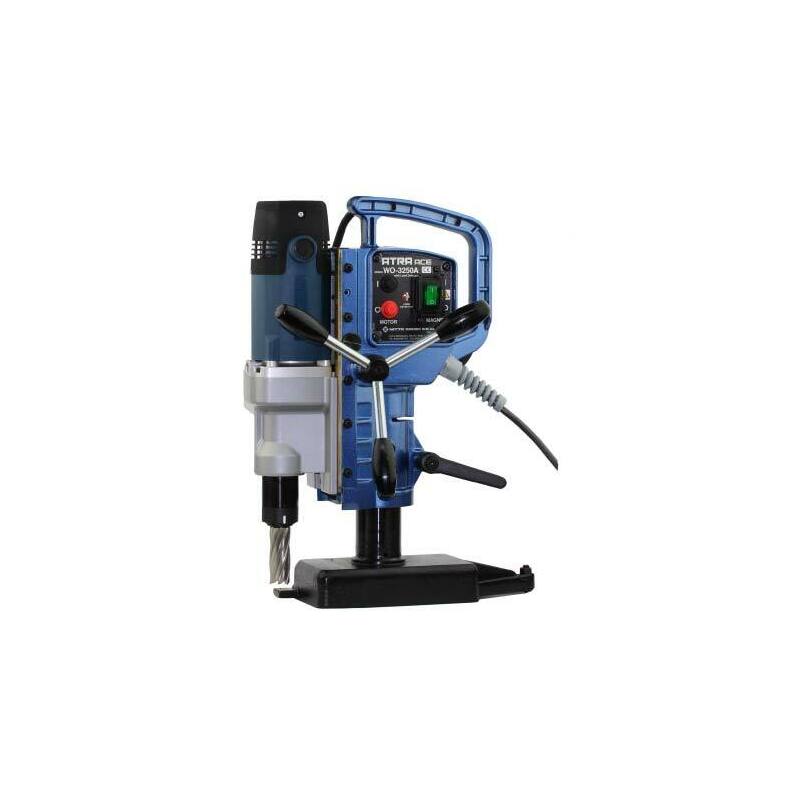

NITTO KOHKI WO3250A Magnetic Based Drill- Manual Feed

• From the extremely efficient electro-magnet to the height adjustable frame with reversible feed handles, the new ATRA ACE is more compatible to user needs while offering greater operator safety.
• Original HIBROACH cutters drastically shorten drilling time when compared to similar sized conventional twist drills. An optional One-Touch keyed chuck allows the use of up to 12mm twist drills.
• Newly developed Over-Load shutdown, magnet open-circuit sensor, and fail-safe restart technology formerly only found on high-end Nitto Kohki automatics is incorporated on the machine to further increase drill output while keeping costs down and safety paramount.
• Power source (single phase): 220~240V AC50/60Hz
• Electric drill rated power consumption: 950W
• Electric drill rated current: 4.3A
• Electric Drill No load speed: 530 min-1 (rpm)
• Magnet power consumption: 70W
• Hole cutting capacity – One-touch type HI-BROACH: 12-32mm diameter, 9-50mm plate thickness
• Magnet holding power: 9,000 N (kgf)
• Magnet dimensions: 99 x 177mm
• Dimensions: 318 mm x 194mm x 361mm
• Weight: 13kg
