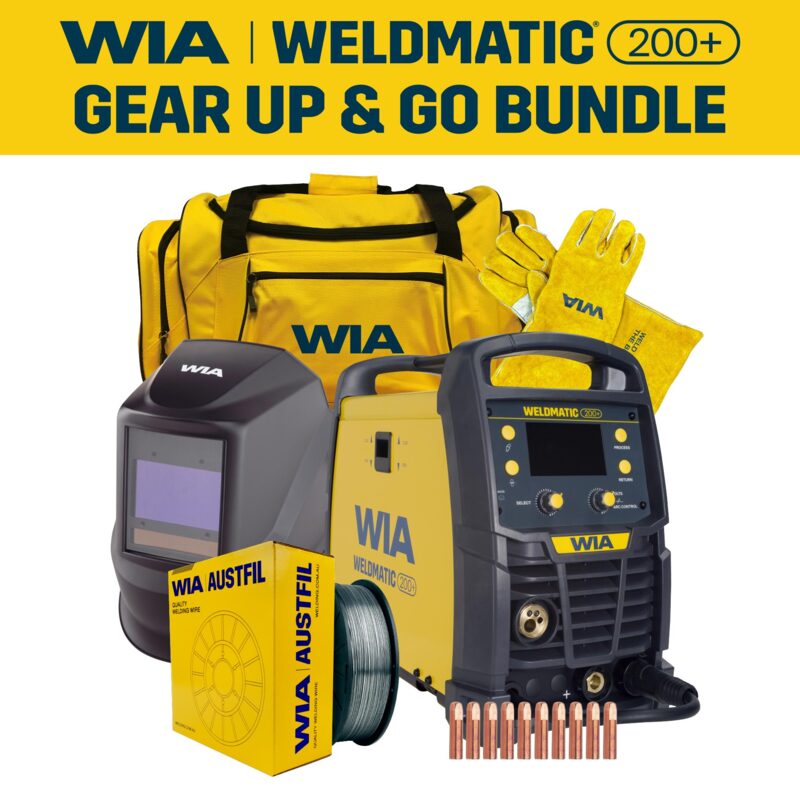

The Weldmatic 200+ Multi‑Process Welder (CP142‑1) is a versatile, professional‑grade inverter that merges MIG, Stick and Lift‑TIG welding into a single, portable unit. Designed for intermediate to expert welders, it delivers reliable performance on steel, stainless steel and aluminium, making it ideal for workshops, fabrication shops, automotive repairs, farming, construction and on‑site projects. Its intuitive LCD interface with preset modes and memory selection speeds setup, while the lightweight 17 kg design ensures easy transport without sacrificing power or precision.
– Combines MIG, Stick and Lift‑TIG welding in one compact machine
– Intuitive LCD with preset welding modes and memory for rapid setup
– Lightweight 17 kg construction for true portability on job sites
– Handles steel, stainless steel and aluminium with professional‑grade output
– Single‑phase inverter technology provides stable, high‑quality arc control
– Ideal for fabrication, repair, automotive, farming and construction applications
– Input voltage: 230 V AC, single‑phase
– Output current range: 10 – 200 A (adjustable)
– Duty cycle: 60 % at 200 A (10 min on / 10 min off)
– Max welding thickness: 12 mm steel, 6 mm aluminium, 10 mm stainless steel
– Weight: 17 kg (37.5 lb)
– Dimensions (W × H × D): 380 mm × 210 mm × 260 mm
– Cooling system: Forced‑air fan with thermal protection.
