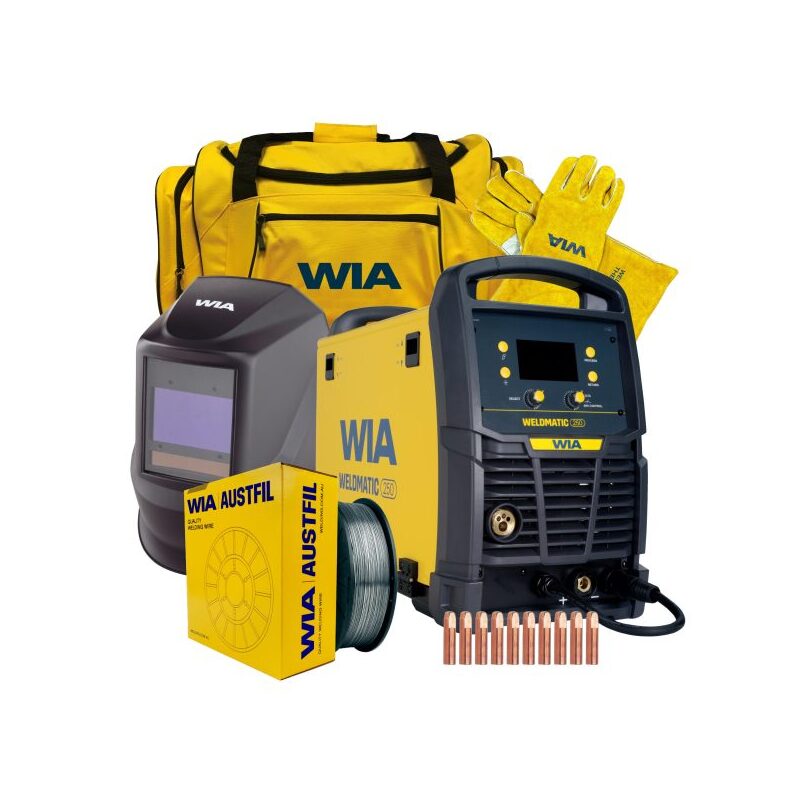

The WIA Weldmatic 250 Bundle (CP143-Bundle) is a complete, ready-to-weld package designed for tradespeople, fabricators, farmers, and maintenance professionals who demand professional-grade welding performance. Built around the powerful Weldmatic 250 Multi-Process Welder, this bundle combines MIG, Stick, and TIG welding capability with premium accessories and consumables so you can start welding straight out of the box. With a maximum MIG output of 250 amps and the ability to weld up to 10mm steel plate in a single pass, the Weldmatic 250 delivers the power required for heavier fabrication work, all in a portable 37kg package suitable for both workshop and on-site use. Backed by a 3-year manufacturer warranty and compliant with Australian standards, this bundle represents exceptional value for serious welders.
– Multi-process capability: MIG (GMAW), Stick (MMAW), and Lift TIG (GTAW) welding in one compact machine
– 250A single-phase output welds up to 10mm steel plate in a single pass
– Digital LCD interface with pre-set parameters and memory selections for fast, easy setup
– Integrated wire feeder accepts both 5kg and 15kg wire spools for reduced downtime on larger jobs
– Supports gas-shielded and gasless flux-cored wires for maximum versatility
– Built-in thermal protection, Arc Force, Hot Start, and Burn Back control for safe and consistent results
– Voltage Reduction Device (VRD) enhances safety during Stick welding operations
– Includes OpticFX Nero Auto-Darkening Welding Helmet, Austfil T-11 gasless MIG wire, gloves, contact tips, and WIA Duffle Bag
– 3-year manufacturer warranty; compliant with AS60974.1 and AS1674.2
– Welding Processes: MIG (GMAW), Stick (MMAW), Lift TIG (GTAW)
– Maximum MIG Output: 250A
– Rated Duty Cycle: 250A at 26.5V, 20%
– Input Power: 240VAC, 50/60Hz, single phase
– Required Supply: 20A plug and supply, 25A circuit breaker (15A plug supplied for commissioning only)
– Generator Requirement: 14 kVA peak
– Wire Spool Capacity: 5kg and 15kg
– Drive Rollers: 0.9/1.2mm V-groove (MIG); 0.9/1.2mm knurled (gasless)
– Maximum Plate Thickness (single pass): 10mm steel
– Weight: 37kg (two-person lift handles included)
– IP Rating: IP21S
– Standards: AS60974.1, AS1674.2 (VRD)
– Warranty: 3 years
